Here’s the 6th video in the Command Technologies HF-2500 teardown and rebuild by Steve G0UIH – Vortex Antenna Systems/Q82.uk. Here in Part 6, we assemble the new RS Components switch onto the front panel.
See the Video Part 6 – Rotary Switch Replacement
Click on any of the images below for a larger hi-res version.

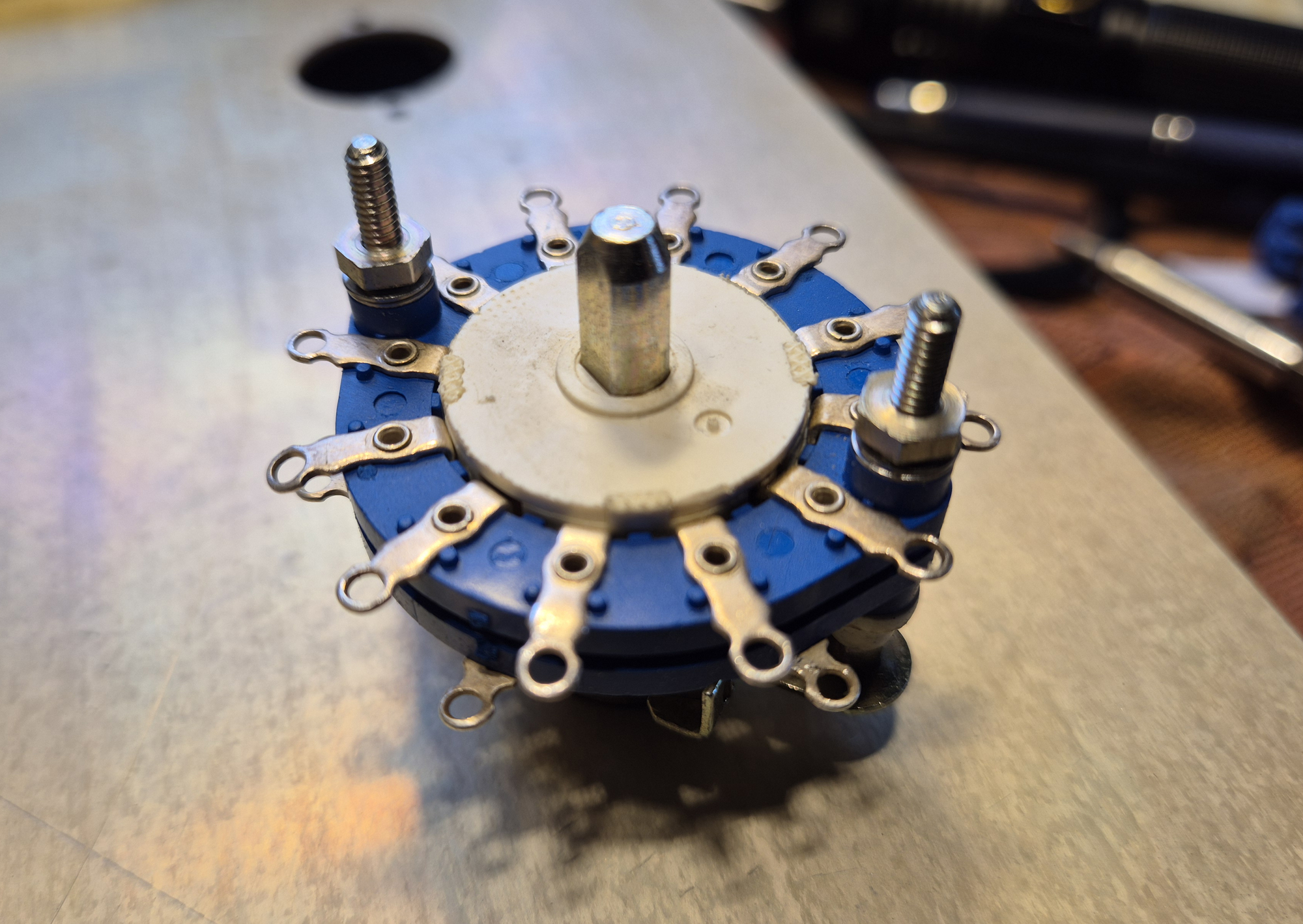

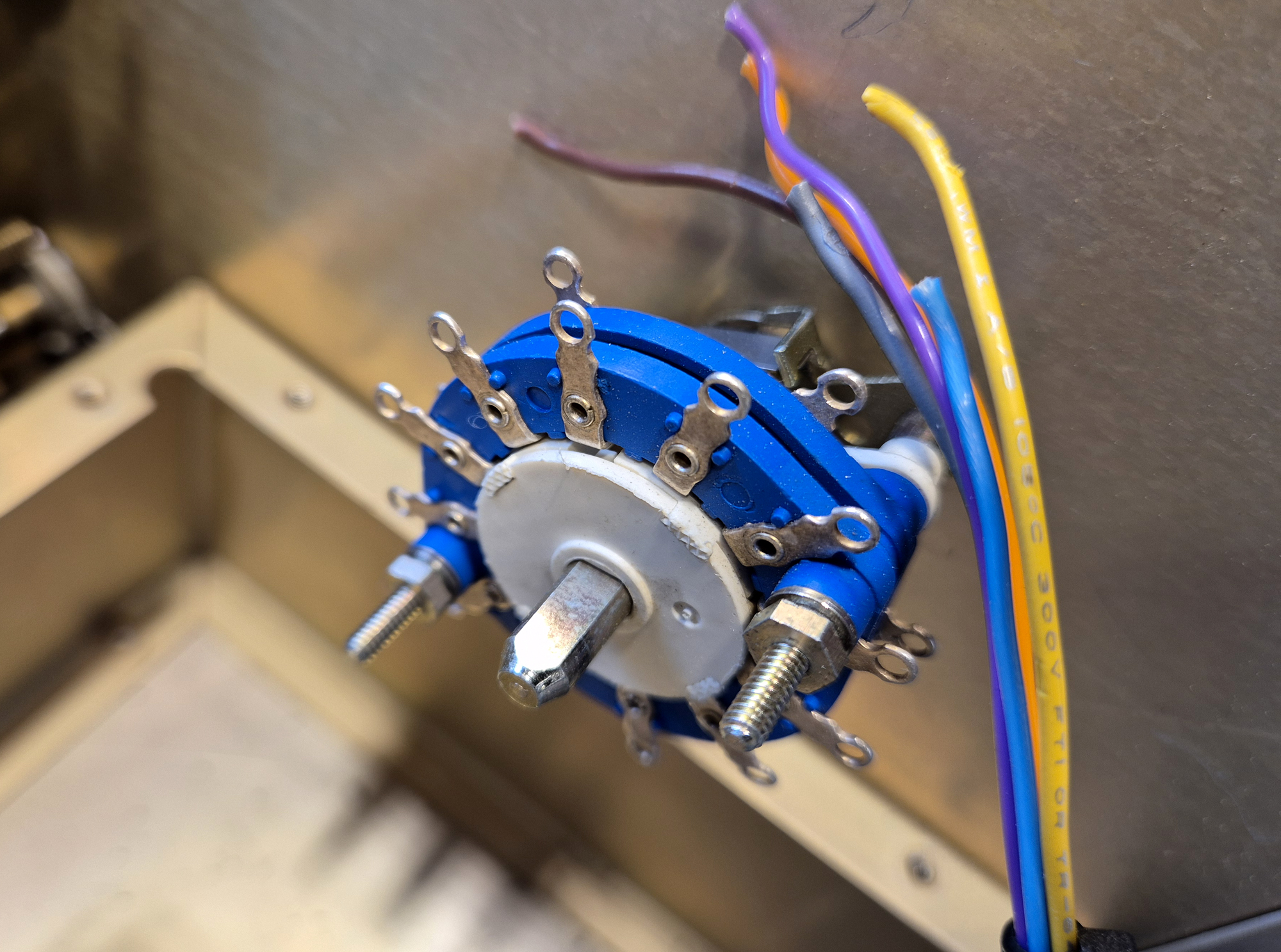

This is a 2 pole 2×6 position unit. We only need 1 pole and 6 positions

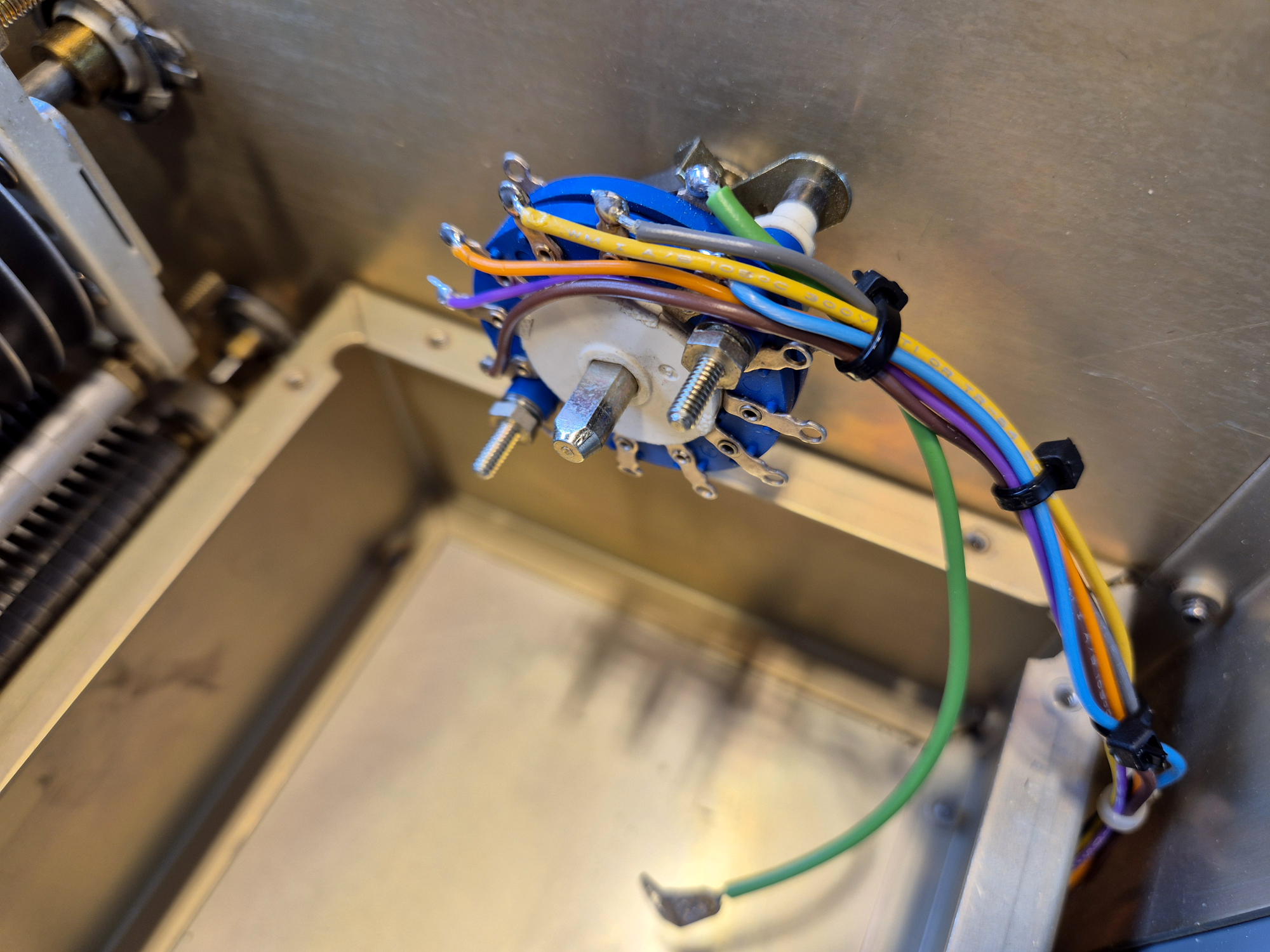

Brown = 10m, Violet = 15m, Orange = 20m, Yellow = 40m, Grey = 80m and Blue = 160m
These switch the small signal relays located in the rear tuning unit
